CO₂ lasers

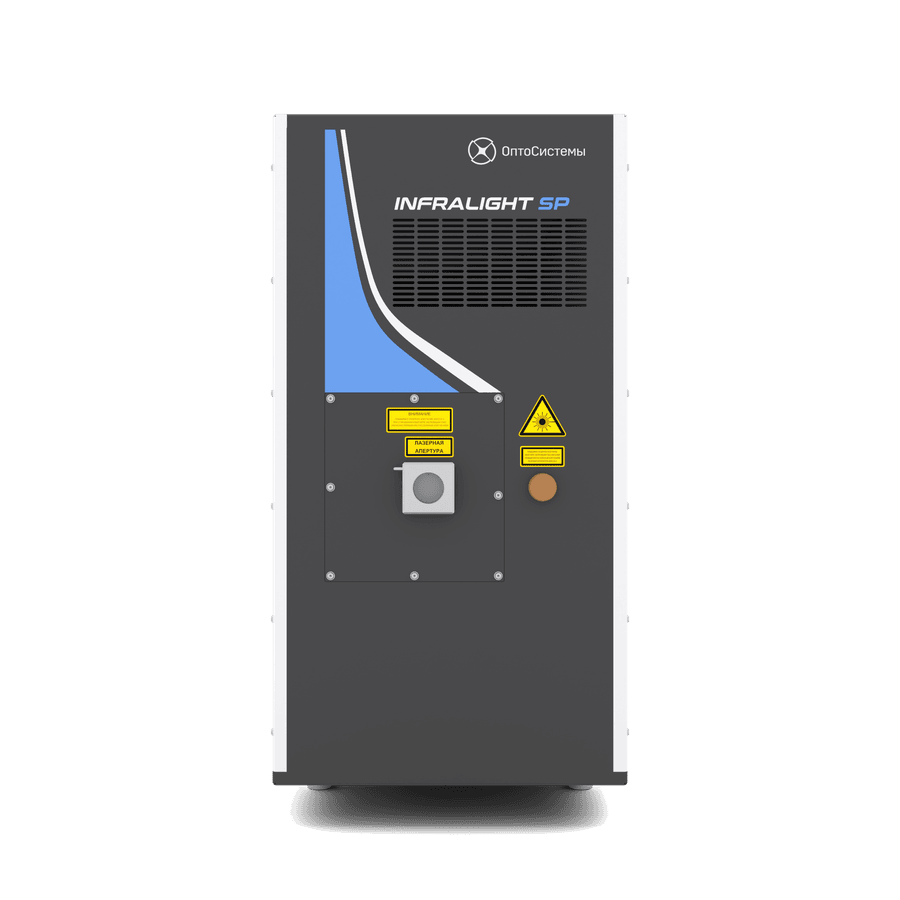

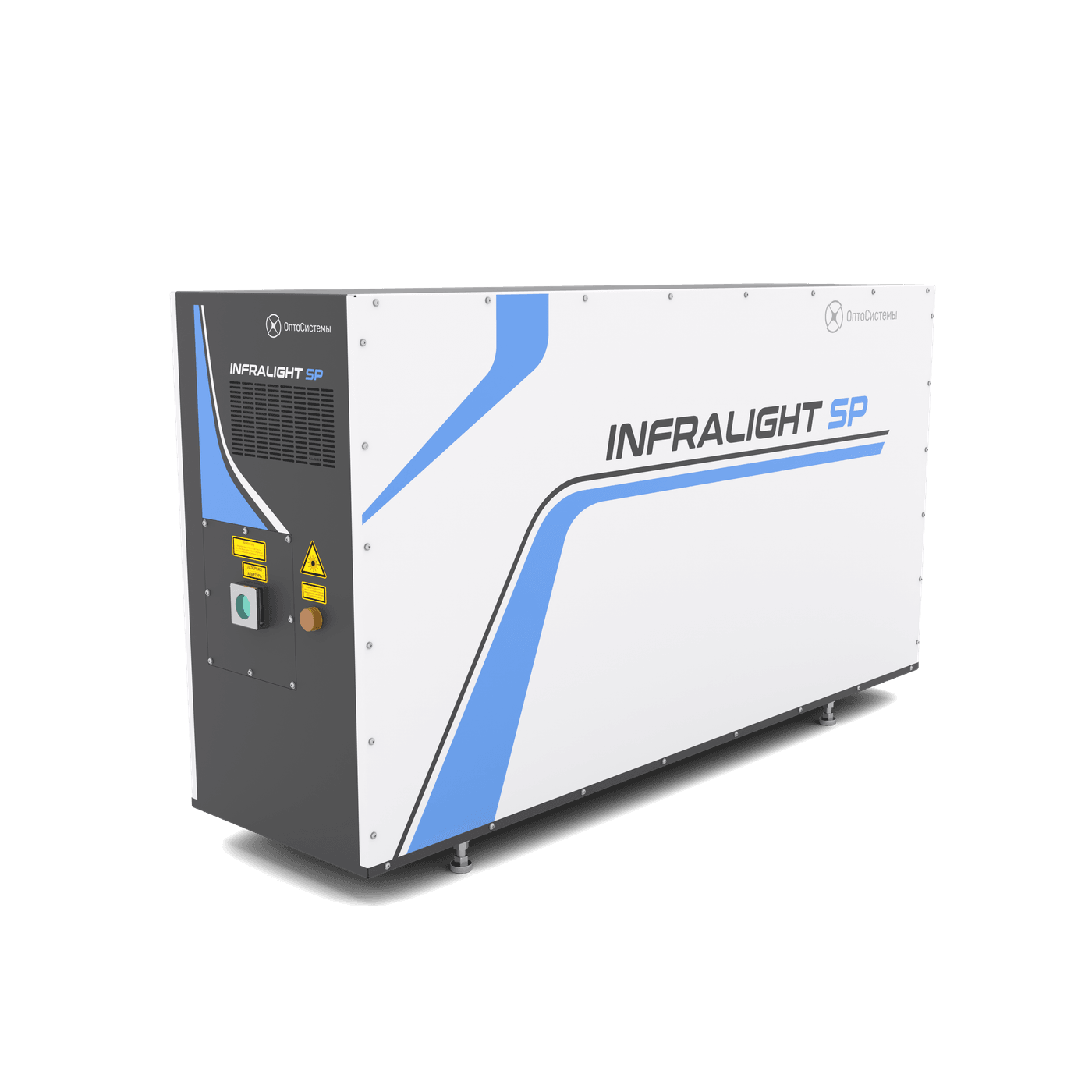

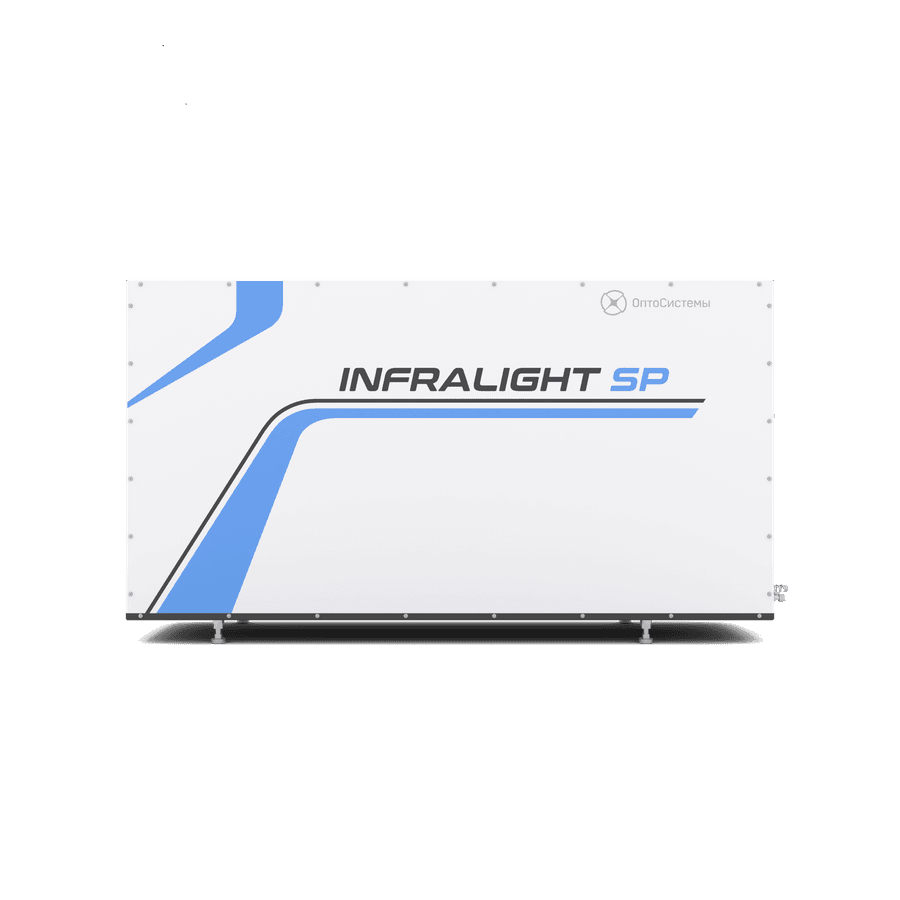

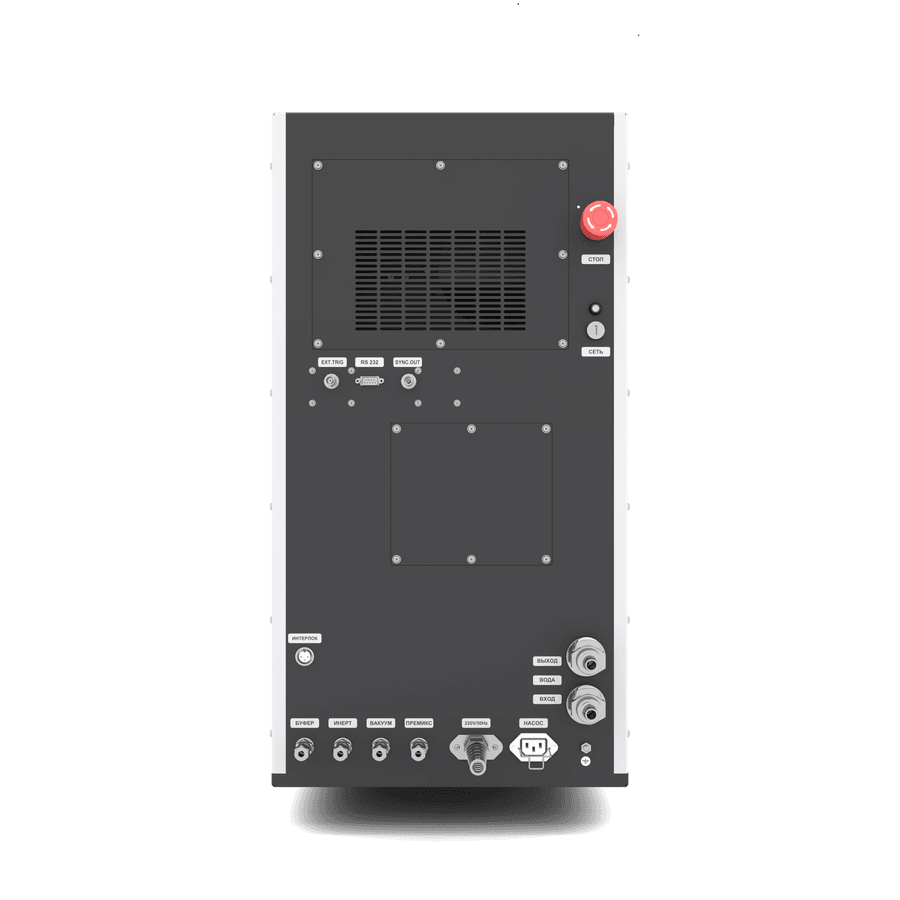

InfraLight SP
Pulsed CO₂ laser with short pulse duration
10–100Hz
Max. repetition rate
Isotope separationNon-destructive testingPlasma sourcesLidar researchSurface cleaning
Features
Specifications
Max. repetition rate, Hz
Total variants: 2
| Max. repetition rate | 10Hz | 100Hz |
| Max. pulse energy | 700mJ | |
| Max. average power | 7W | 60W |
| Energy stability | < 2% | |
| Beam dimension | 11 x 11mm | |
| Pulse duration | 50 – 100ns | |
| Cooling | water | |
| Power | 220/380 V, 50 Hz, < 2000 VA | |
| Dimension | 1360 x 382 x 720mm | |
| Weight | 180kg | |
