730
Power supply for industrial solid state lasers with programmable pulse shape and duration.
- EMC compliant
Specifications
| 730 | 731 | 732 | |
|---|---|---|---|
Cooling | воздушное | ||
Power | 220/380 В, 50/60 Гц | ||
PC control | RS-232/ 422/ 485 | ||
Max. output power | 7kW | 4kW | |
Number of lamps | 1 | 2 | 1 |
Maximum pulse energy | 1.5kJ | 0.8kJ | |
Maximum pulse duration | 50ms | ||
Maximum output current | 600A | ||
Output current adjustable range | 50A – 600A | ||
Simmer current | 0.9 ±0.1A | ||

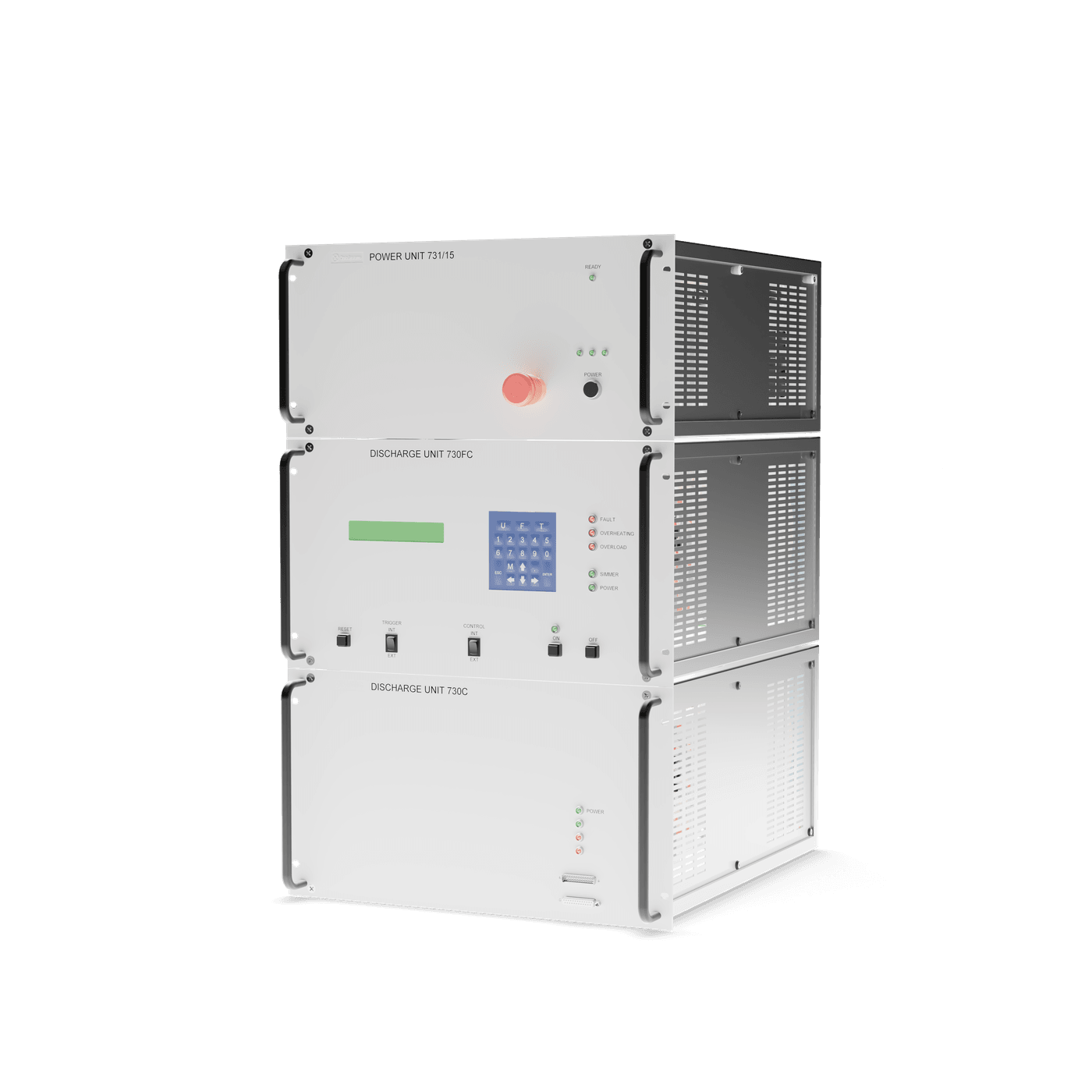

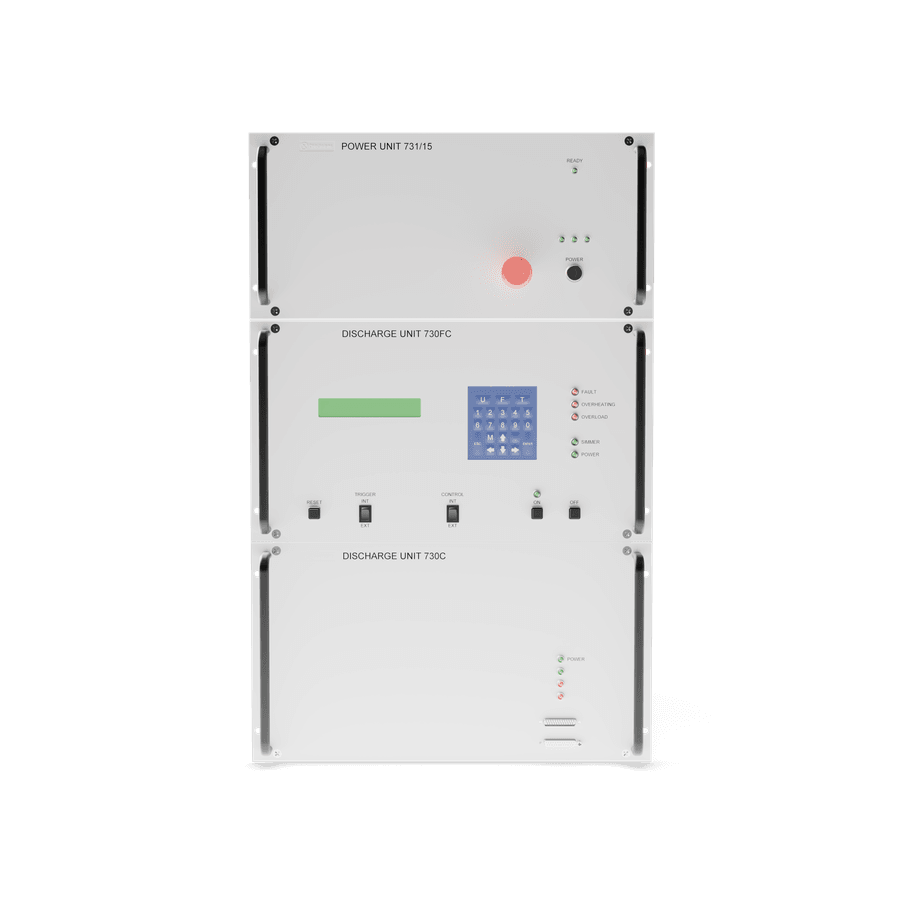

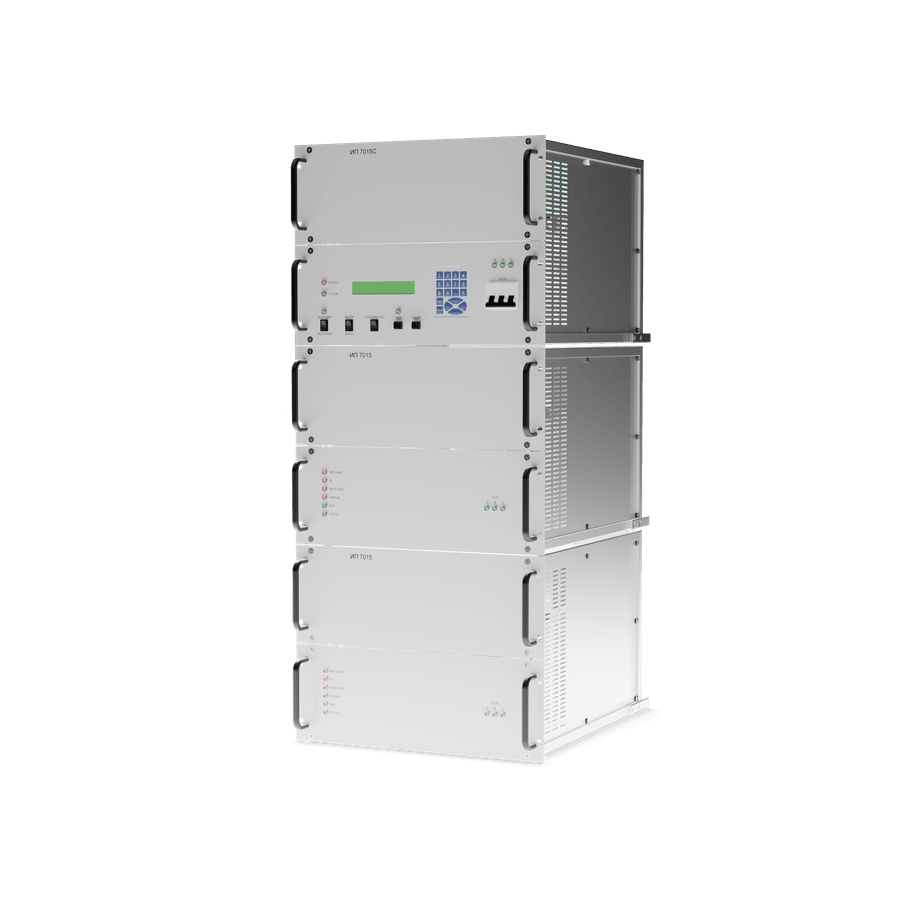

Power supplies for industrial solid state lasers with programmable pulse shape and duration consist of a charging module and one or several (up to three) discharge current control modules. The discharge current control module is designed for connection of one or several flash lamps with a total discharge gap length of 150 mm.
High-voltage power supplies of this series allow forming laser pulses of any given profile with a specified duration, which provides fast and optimal adjustment of the technological laser radiation parameters in accordance with the requirements of a specific technological process.
This series of power supplies includes:
- charging module;
- one or several (up to three) discharge current control modules.
