FEMTO VISUM
Femtosecond laser platform for corneal applications
with LENTEX lenticular correction
Extended range of treatments
Designed in tight cooperation with practicing corneal surgeons, qualified for the most demanding applications
MULTI OVERLAY
Laser scan tracks are partially overlayed to realize uniform cut without tissue bridges
SMOOTH LINES
Density of laser spots is varied on sides of the scan tracks to assure a uniformity of fluence on the overlayed areas
LENTEX: the Lenticular Correction
Intracorneal lenticule formation followed by it’s removal through small outer incision.
Minimally invasive, excellent in prognosis
S-LENTEX
Conventional lenticule+ small incision procedure

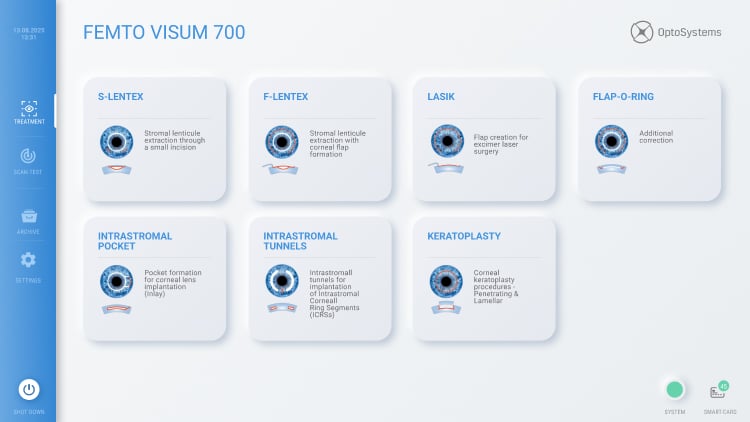

Intuitive software
The automatic aiming technology guarantees the selection of the optimal position for the operation, and the possibility of correcting the position after fixing the eye opens up a new level of control.
Flexible correction
The ability to change the parameters after fixing the eye.
Perfect centering
Automatic alignment of the valve with the pupil even when it is displaced.
User-friendly interface
Ergonomic control panel for precise touch control.

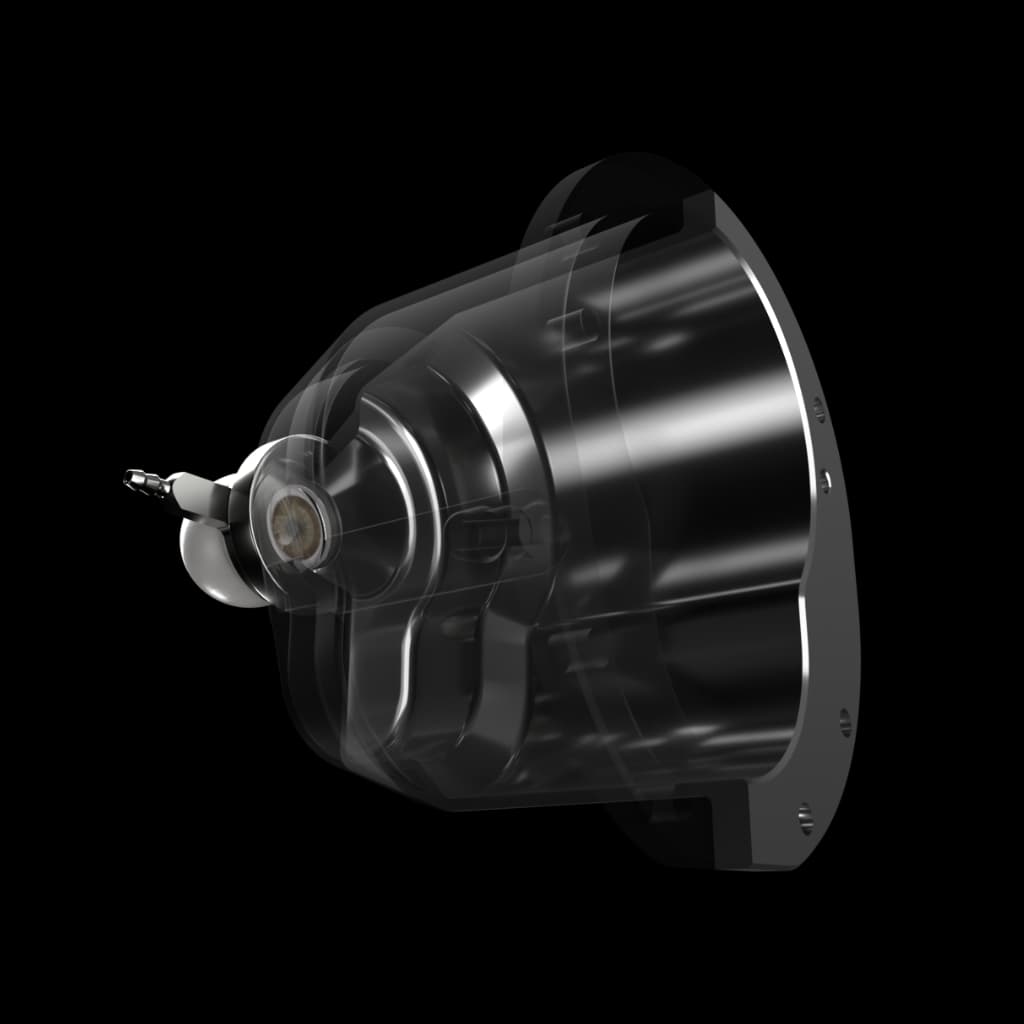

Atraumatic quartz patient interface
Safety
The patient's interface is fixed to the docking cone of the laser also using a vacuum. The interface is easily and securely fixed with a single touch.
Quality
The flat shape of the patient's interface leads to an even distribution of laser energy over the entire area of the treated area, so the thickness of the laser cut is the same across the entire diameter of the flap being formed.
Predictability
The optimized patient interface slightly changes the natural curvature of the eye and does not significantly increase intraocular pressure.
Laser source
FL300 femtosecond laser source internally designed and produced By OptoSystems. Expected lifespan > 10 years.
1035 nm
Wavelength
>2 uJ
З pulse energy
<300 fs
Pulse duration
10 years
Expected lifespan
Air cooling
Eliminates the need for bulky and expensive water-cooled chillers.
Remote monitoring of laser status
The possibility of integration into automated systems, remote control of operation parameters and timely warning about maintenance. Reliability Unique stabilization system The fastest customer service Own development and production The best technical specifications
Reliability
Уникальная система стабилизации и высокий ресурс газовой смеси
The fastest service
In-house development and production
Best technical specifications
Comprehensive solution for ophthalmic surgery
Direct data exchange between excimer and femto
Direct software window translation from femto to excimer screen for remote control
Rotating patient bed
Ensures maximum comfort for the patient and surgeon during combined surgeries.

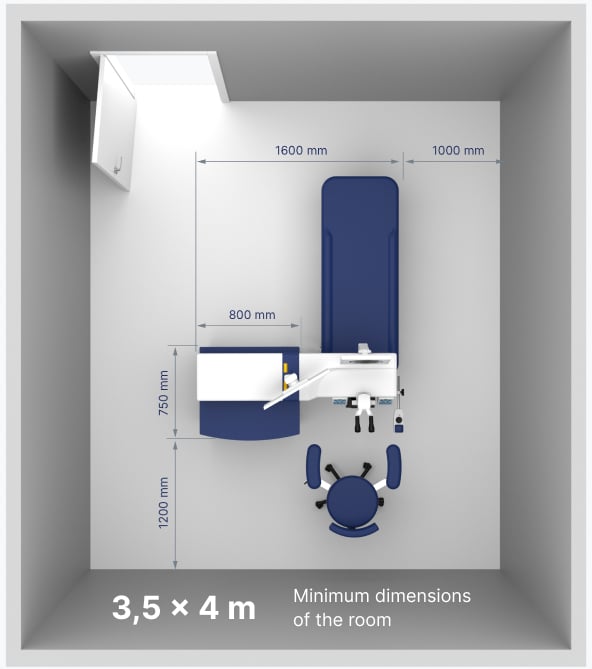

Room requirements
Room requirements for installation and operation of the FEMTO VISUM platform
Consumables
Unlike excimer laser systems, the Femto Visum femtosecond laser system eliminates the need to use gas or replace optical elements during service maintenance.
Individual single-use patient kit
Technical specifications
Key technical parameters of the FEMTO VISUM system
