Excimer lasers

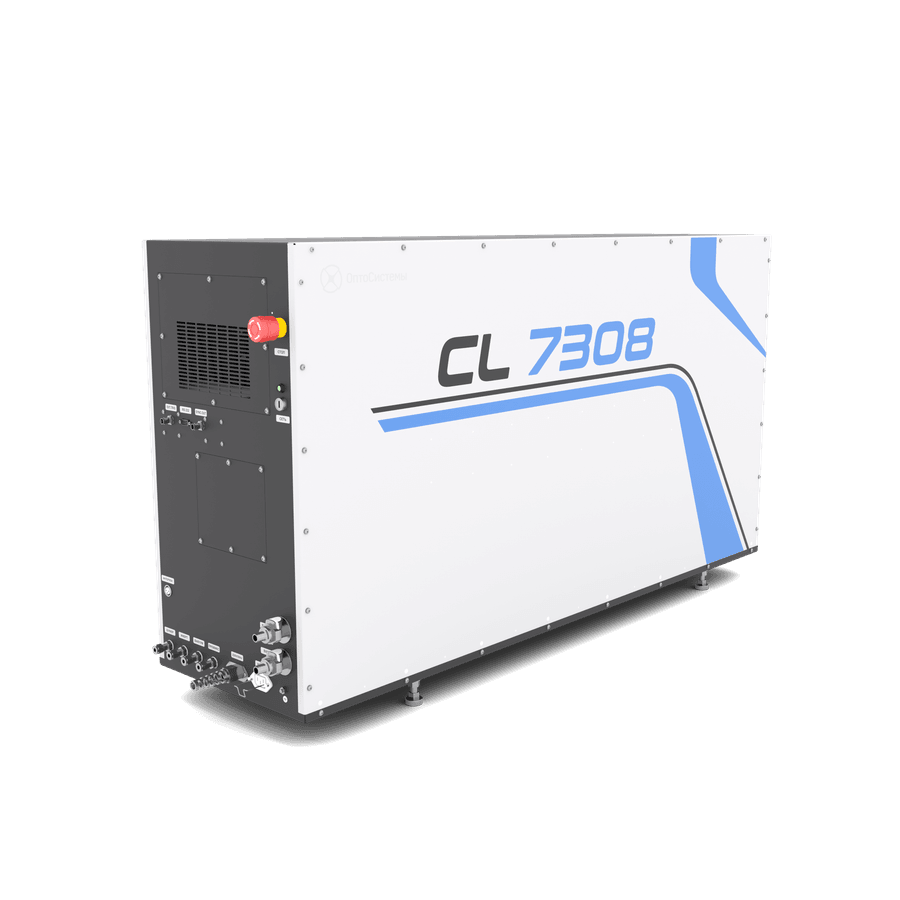

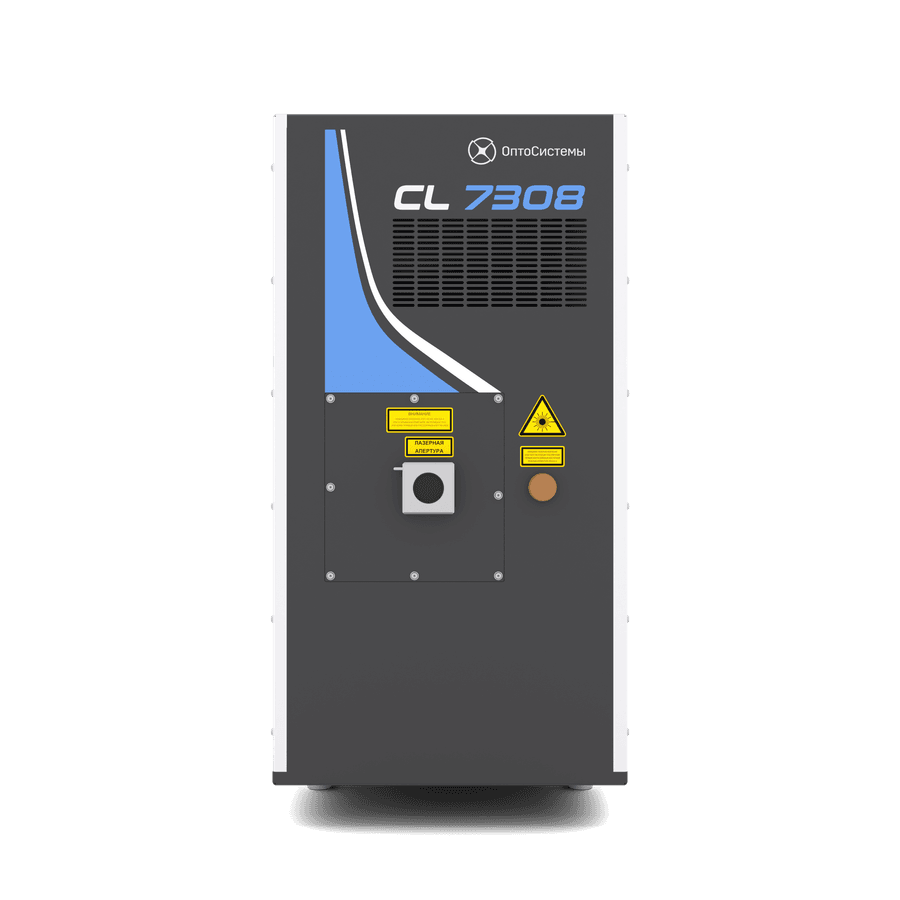

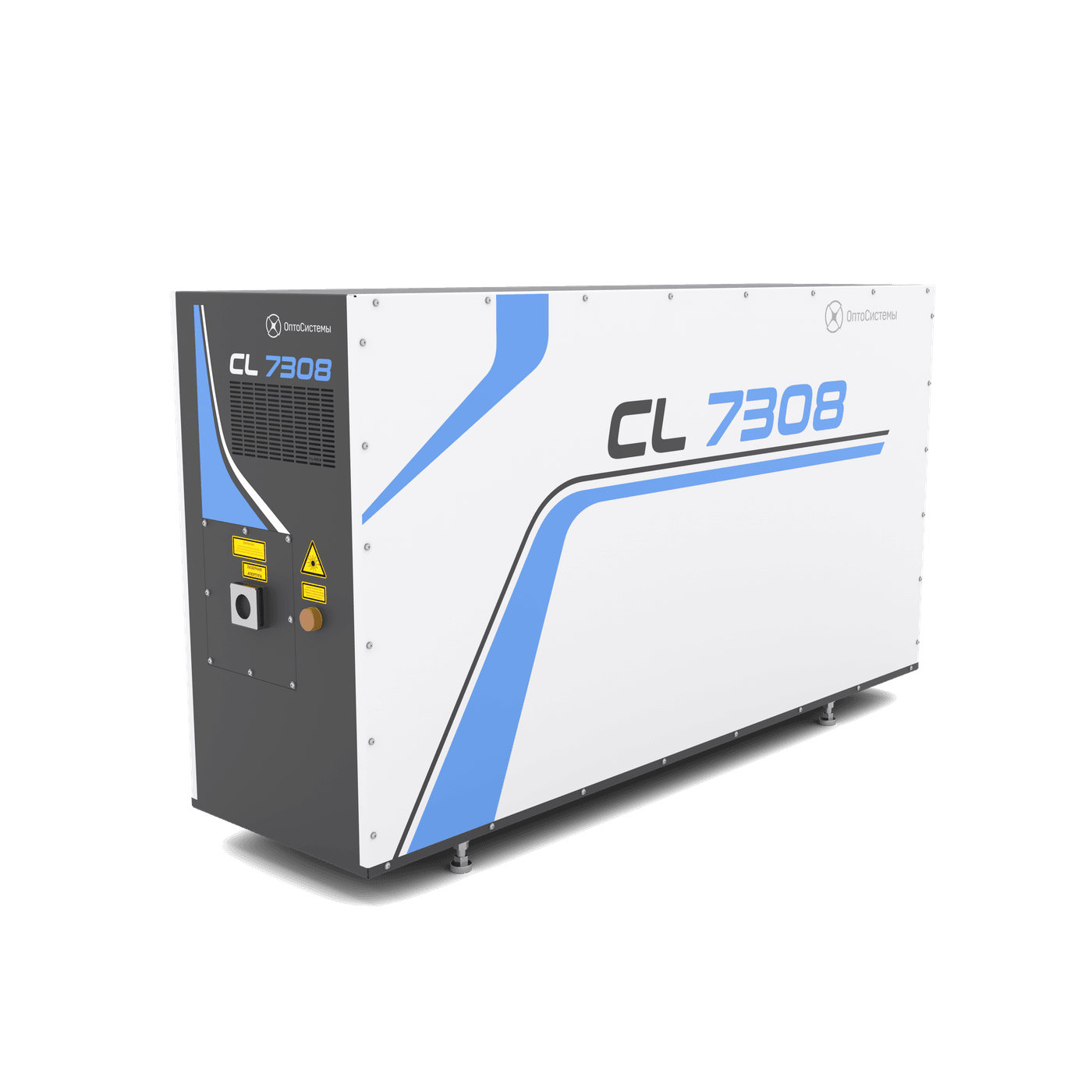

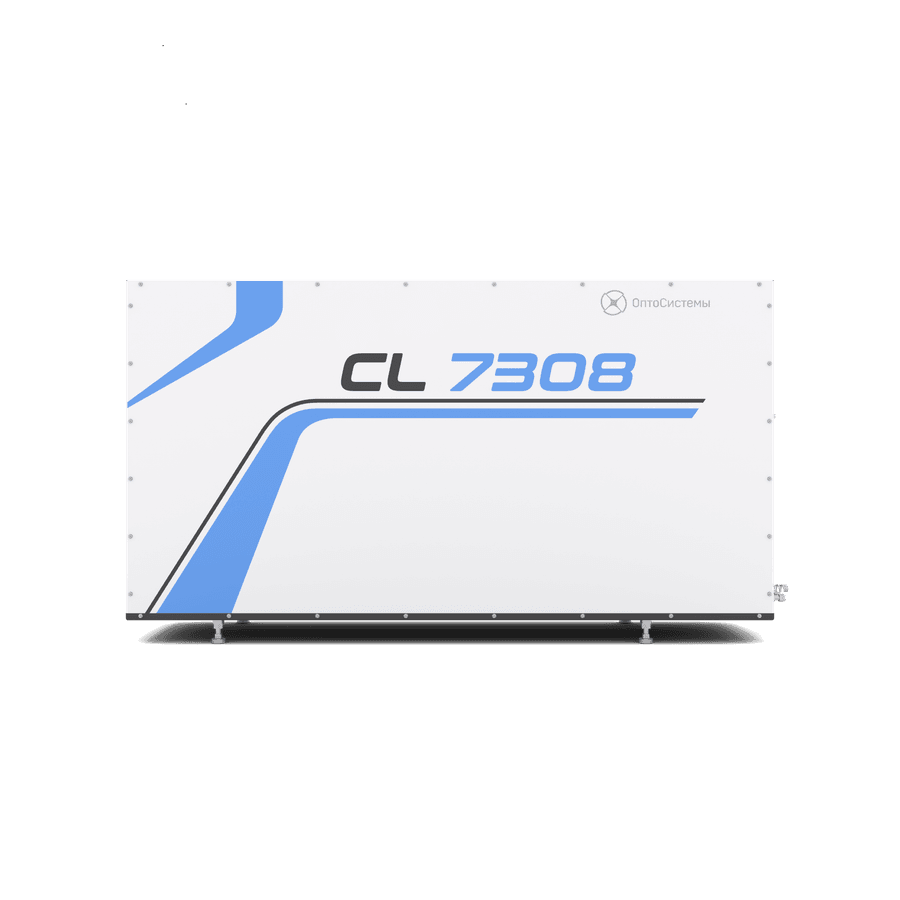

CL7308
Specialized excimer laser with extended pulse duration
308nm
Wavelength
50Hz
Max. repetition rate
Cardiovascular Disease Treatment Systems
Features
Specifications
Wavelength | 308nm |
Max. repetition rate | 50Hz |
Max. pulse energy | 280mJ |
Energy stability | < 2% |
Beam dimension(FWHM, V х H) | 22 х 14mm |
Divergence(FWHM, V х H) | 2.6 x 1.4mrad |
Pulse duration(FWHM) | 180ns |
Cooling | air/water |
Power | 220/380 V, 50 Hz, < 3500 VA |
Dimension(L х W х H) | 1430 х 380 х 760mm |
Weight | 170kg |
