Excimer lasers

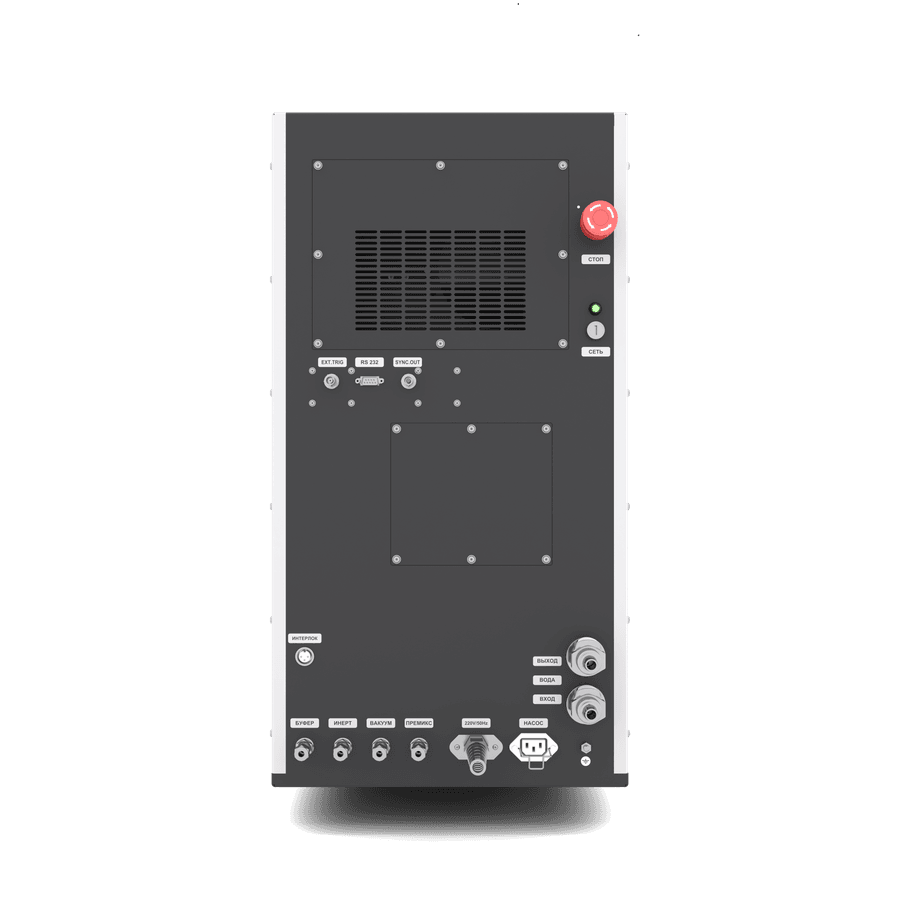

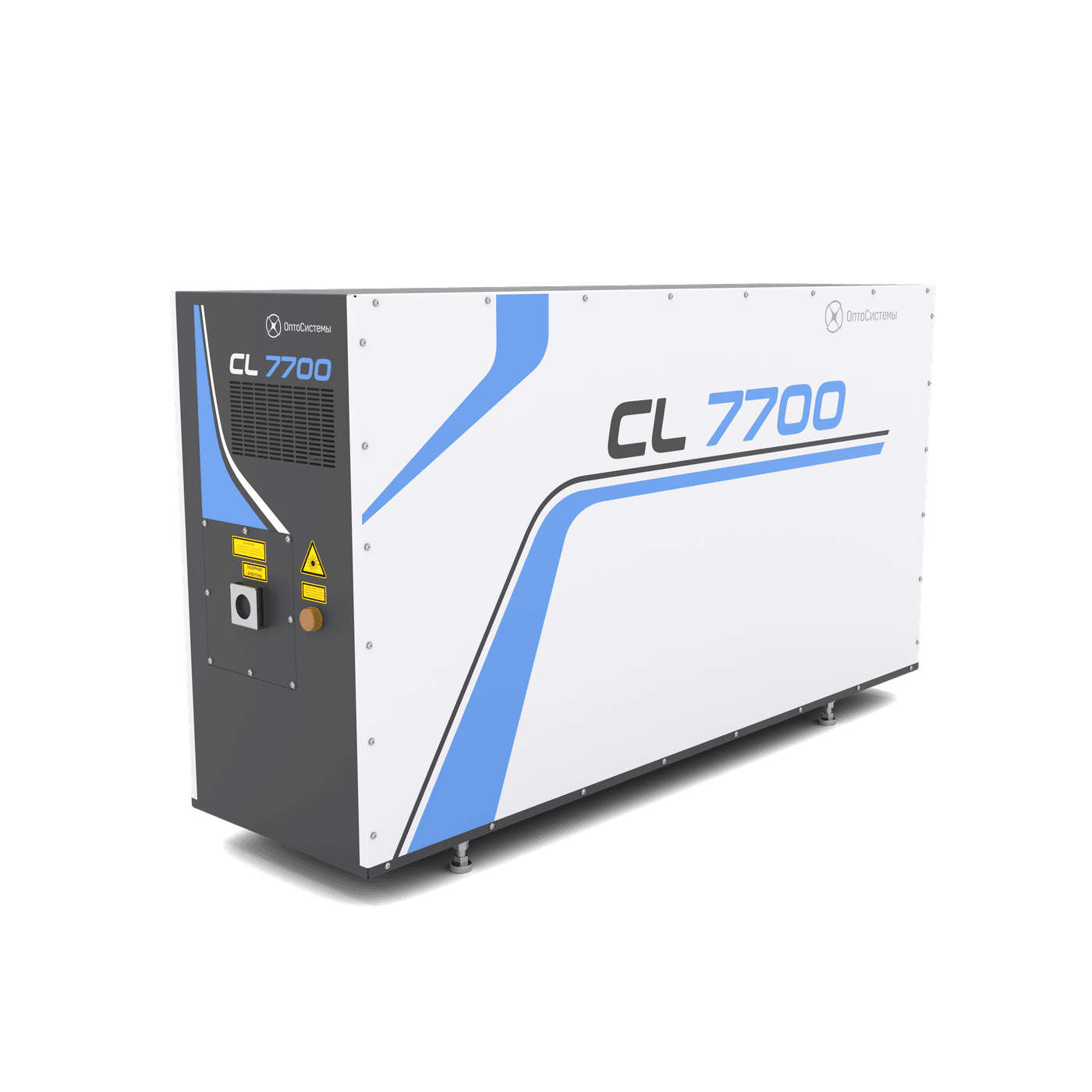

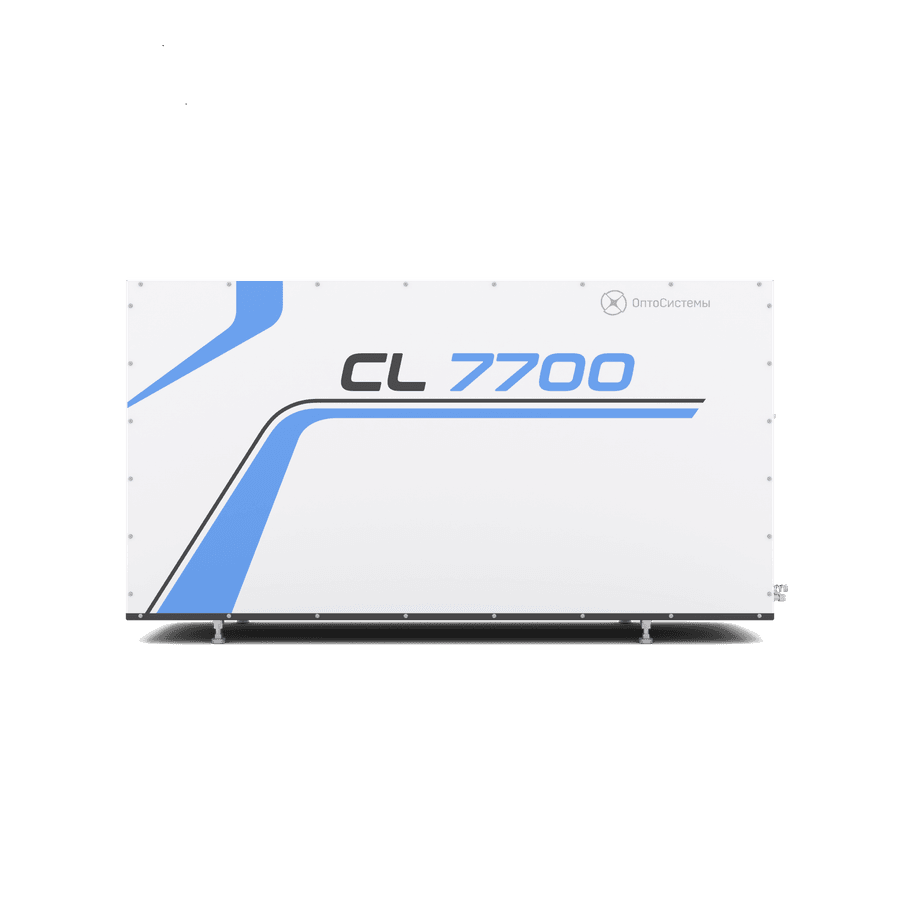

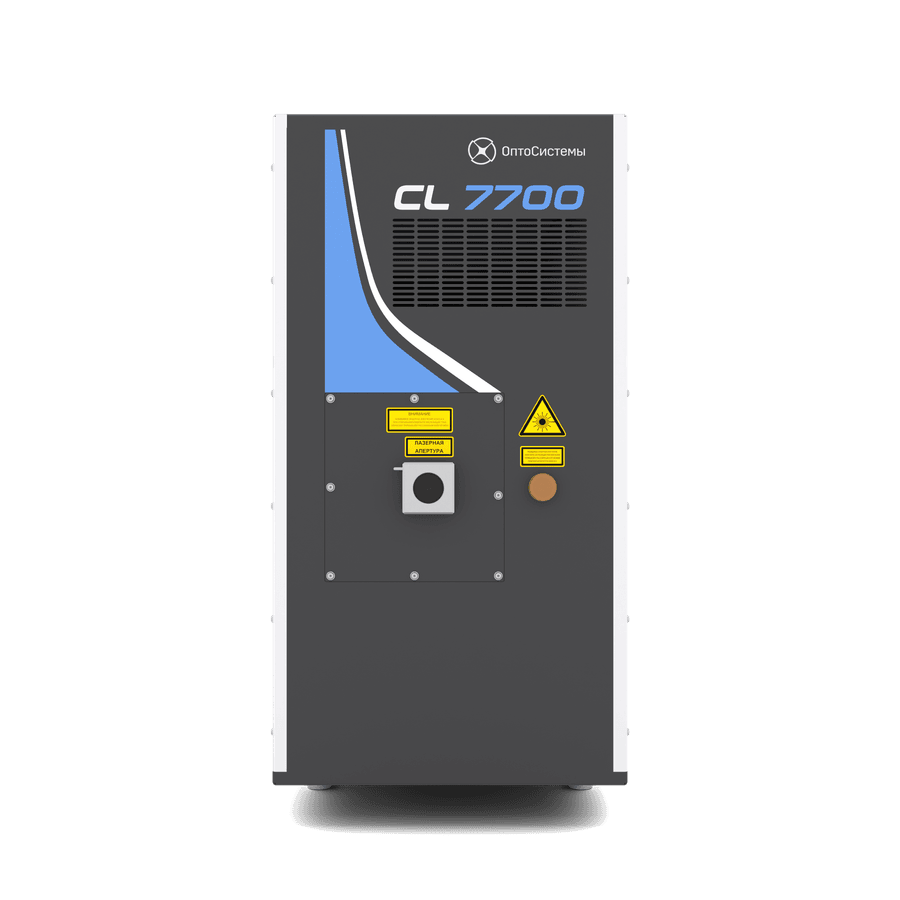

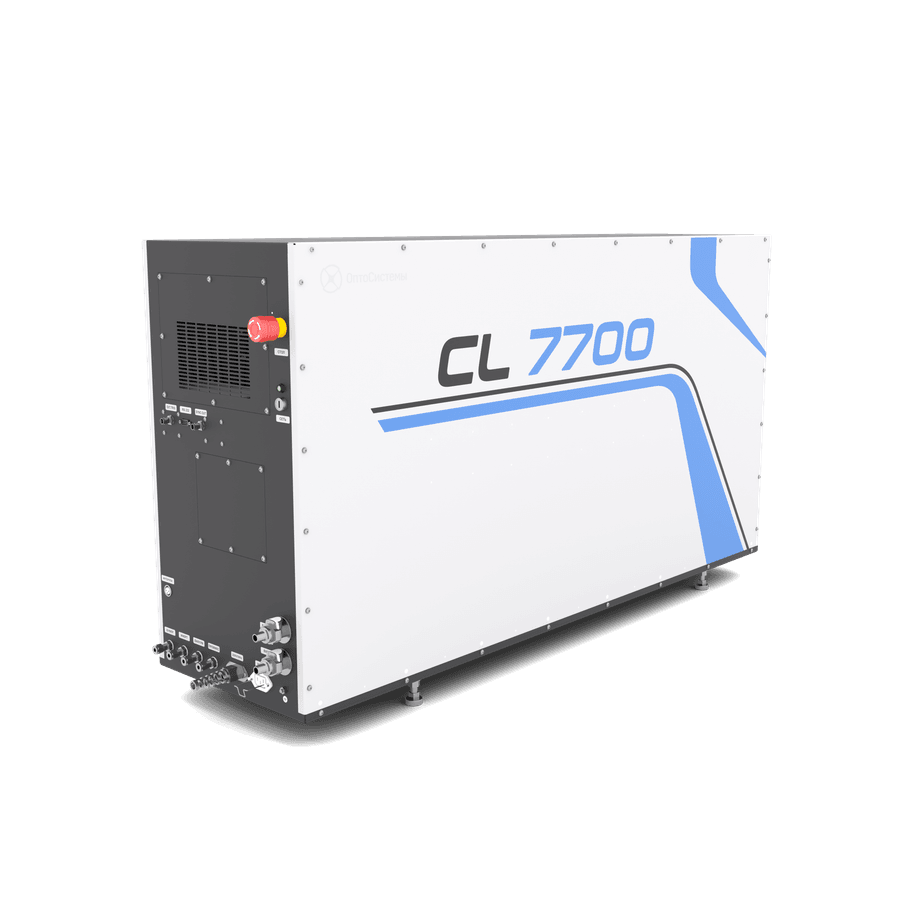

CL7700
Excimer laser with increased pulse energy
20Hz
Max. repetition rate
193, 248, 308nm
Wavelength
Material processingLaser Lift-OffPLD (Pulse laser deposition)
Features
Specifications
Wavelength, nm
Total variants: 3
| Wavelength | 193nm | 248nm | 308nm |
| Max. repetition rate | 20Hz | ||
| Max. pulse energy | 500mJ | 750mJ | 450mJ |
| Max. average power | 7W | 12W | 8W |
| Energy stability | < 2% | ||
| Beam dimension | 28± 2 х 9 ± 2mm | ||
| Divergence | 4 х 1.3mrad | ||
| Pulse duration | 20ns | ||
| Cooling | water | ||
| Power | 220/380 V, 50 Hz, < 2000 VA | ||
| Dimension | 1430 х 380 х 760mm | ||
| Weight | 170kg | ||
